ISO12233: 2014 Test Charts on Color High-Precision LVT Film
본문
These charts are produced with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail.

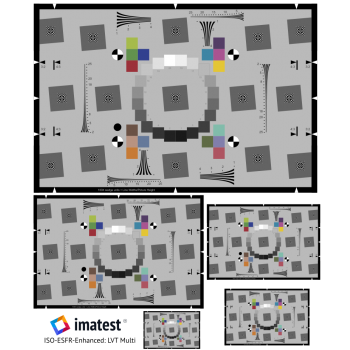

We have multiple options available including Small (Half Sheet), Medium (Full Sheet), and Multi-Size (Full Sheet) targets.
Detail information
Video
The .75x version (Enhanced - Full sheet) is: 150 mm x 225 mm
The .66x version (Extended - Full sheet) is: 132 mm x 235 mm
| Sizes | Enhanced - Multi Dimensions | Extended - Multi Dimensions |
|---|---|---|
| Small | 190.5 mm × 127 mm 7.5" × 5" | 196.85 mm × 110.74 mm 7.75" × 4.36" |
| X-Small | 114.3 mm × 76.2 mm 4.5" × 3" | 127 mm × 71.37 mm 5" × 2.81" |
| XX-Small | 76.2 mm × 50.8 mm 3" × 2" | 88.9 mm × 50 mm 3.5" × 1.97" |
| XXX-Small | 57.15 mm × 38.1 mm 2.25" × 1.5" | 63.75 mm × 35.81 mm 2.5" × 1.41" |
| XXXX-Small | 38.1 mm × 25.4 mm 1.5" × 1" | 44.45 mm × 24.89 mm 1.75" × 0.98" |
