SFRplus Charts for GTI Light Boxes
본문

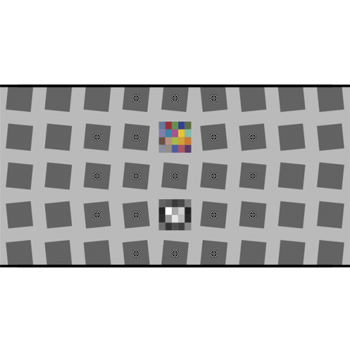

The SFRplus test chart can be used with the Imatest SFRplus module to measure MTF, lateral chromatic aberration, distortion, and tonal response.
The SFRplus module features fully automated region-of-interest detection.
The SFRplus chart offers significant advantages over commonly used charts such as the ISO 12233 chart, including 1) much less wasted area, 2) the ability to produce a map of sharpness over the sensor surface, 3) better measurement accuracy due to the lower contrast, and 4) full support for automated testing.
Detail information
Substrates
These charts are produced on either photographic film with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail, or on a translucent inkjet film.
LVT Film Resolution
The edges have an MTF50 >= 10 cycles/mm, which is about 2-3 times better than the best inkjet charts. The large patterns are fine enough to produce good results with up to 30 megapixel cameras.
Inkjet Film
The edges have an MTF50 >= 4 cycles/mm. The large patterns are fine enough to produce good results with up to 10 megapixel cameras.
