Skype™ & Lync Hardware Certification Video Quality Test Charts
본문
These charts are compliant with the Unified Skype Lync standard v1.0 released August 2013 and v2.0 released November 2014:
Detail information
Notice: For customers ordering with a PO, please refer to the following table and use the product SKU's on your PO.
| Product Name | Product SKU |
|---|---|
| SFRplus Chart: 40"x60", 5x7, Matte, Two-Tone | SP08320 |
| SFRplus Chart: 24"x34", 5x7, Matte, Two-Tone | SP00128 |
| Dot Pattern Test Chart-Medium-Large (15 Dots High) | DOTM15 |
| Dot Pattern Test Chart-X-Large-Large (15 Dots High) | DOTL15 |
| X-Rite ColorChecker Classic Chart | MSCCC |
| Imatest 36-Patch Dynamic Range Test Chart on High Precision 8x10" Film | ITDR36 |
| ISO-14524 digital camera contrast chart ST-52-RM | ST-52-RM |
| Imatest Spilled Coins (Dead Leaves) Test Chart-Medium-Matte-3:1-Single | ISC0016 |
| Imatest Spilled Coins (Dead Leaves) Test Chart-Large-Matte-3:1-Single | ISC0024 |

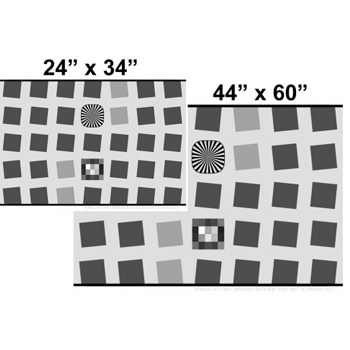

Please note that in 2013, the Skype Specification was revised. In this revision the surface type of the test charts has been changed from Semi-Gloss/Luster to Matte, as a measure to reduce specular reflection. The table below indicates the model numbers for the legacy charts, and the corresponding model numbers for the new matte surface charts.
| Chart Size | Paper Size | Active Area | Legacy Model # | Current Model # |
|---|---|---|---|---|
| Small | 24" × 34" | 22" × 33" | SP01152 | SP00128 |
| Large | 44" × 60" | 40" × 59" | SP09344 | SP08320 |
Charts are black and white, including a focus star, 20 patch step chart, and include 10:1 as well as 2:1 contrast ratios.
As shown on our blog, these charts are first mentioned in Version 5.0 of the Skype™ Hardware Certification Specification.
Skype™ is a registered trademark of Skype Limited.
Lighting Setup for ITDR-36
As written in the specification, "This chart needs an uniform light emitting surface below the chart, such as a dedicated light box." For this purpose we recommend the GL-16E Lightbox Viewer. This lightbox provides even illumination and features a high frequency ballast to eliminate flicker.
